SSCG30-3000/10000 30kW High-Precision Small and Medium-sized Unmanned Aerial Vehicle Engine Test Dynamometer Bench System

SSCG30-3000/10000 30kW High-Precision Small and Medium-sized Unmanned Aerial Vehicle Engine Test Dynamometer Bench System

1. SSCG30-3000/10000 30kW High-Precision Small and Medium-sized Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Component Description

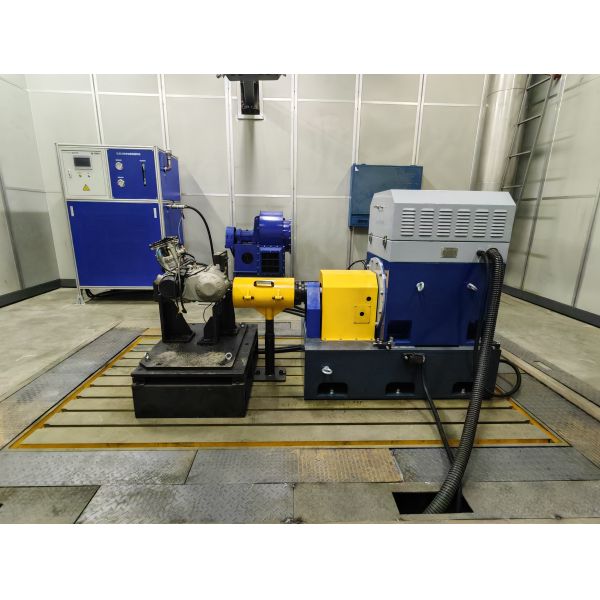

The SSCG30-3000/10000 30kW unmanned aerial Vehicle (UAV) engine test stand is a high-precision test system for the development and validation of small and medium-sized industrial-grade, long-endurance UAV engines. The system integrates high-precision electric dynamometers, modular measurement and control systems, and multi-channel data acquisition systems to comprehensively evaluate key performance indicators such as torque, speed, power, and fuel consumption of 30kW-class piston, rotor, and light turboshaft/turboprop engines.

2. SSCG30-3000/10000 30kW Electric Dynamometer Core Technical Parameters

3. SSCG30-3000/10000 30kW High-Precision Small and Medium-sized Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Core Strengths

1) Lightweight high-precision test platform

Optimized for range and dynamic response of small and medium-sized drone engines, with 0.2% FS high-precision sensors and PID closed-loop control, speed fluctuation < ±0.1%, excellent data consistency.

2) Wide speed coverage for all operating conditions

0-10,000 RPM wide speed range, seamless switching between constant torque and constant power modes, perfectly covering real flight conditions such as start-up, cruise, climb, full load, etc.

3) Four-quadrant operation with energy feedback

Supports electric/power generation dual-mode operation, test energy can be grid-connected for recovery, significantly reducing energy consumption and operating costs.

4) High speed, stable and reliable

Multiple safety protections + shock absorption and noise reduction design ensure smooth operation at 10,000 RPM, suitable for long-term durability tests.

5) Modular, easy to deploy and highly adaptable

Compact and easy to install, it can be quickly adapted to a variety of small and medium-sized drone engines, significantly improving R&D and testing efficiency.

4. SSCG30-3000/10000 30kW High-Precision Small and Medium-sized Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Application Fields

1) Performance testing and calibration of engines for small and medium-sized long-endurance fixed-wing/multi-rotor unmanned aerial vehicles

2) Development and performance verification of 30kW-class piston and rotor engines

3) Testing of power systems for light aviation and low-altitude reconnaissance unmanned aerial vehicles

4) Test of energy systems for small and medium-sized hybrid unmanned aerial vehicles

5) Industrial high-speed motor performance calibration and characteristic testing

5. SSCG30-3000/10000 30kW High-Precision Small and Medium-sized Unmanned Aerial Vehicle Engine Test Dynamometer Bench System Reference Standards

• GB/T 13396—2017 Dynamometers for Power Measurement;
• ‌JB/T 11481-2013 Electric Dynamometers;
• JJG 653-2003 Verification Regulation of Dynamometer Systems;
• GB/T 19022—2003 Measurement Management Systems — Requirements for Measurement Processes and Measuring Equipment;
• GB 5226.1—2019 Safety of Machinery — Electrical Equipment of Machines — Part 1: General Requirements;
• GB/T 2423 Environmental Testing of Electric and Electronic Products.

6. UAV Engine Electric Dynamometer Test Bench Model List

Supports customized services: Speed range, torque range, test software functions, and special environment adaptation solutions can be customized according to requirements.

7. Delivery and After-Sales Support

Delivery services

1) Standard models: Ships within 90 days (including pre-testing before delivery to ensure quick installation upon arrival).

2) Customized models: Delivery in 90-120 days, covering international logistics and distribution to major regions worldwide including Europe, America, Southeast Asia, and the Middle East (sea / land transportation options available, including secure packaging and moisture-proof and rust-proof treatment).

3) Supporting services: We provide complete CE and ISO certification documents and certificates of origin, and a dedicated logistics specialist will follow up throughout the process to assist with customs clearance and ensure the safe and timely delivery of large equipment to the site.

After-sales support

1) Warranty commitment: 1-year warranty on core components (dynamometer, torque flange), lifetime maintenance; free troubleshooting and repair services during the warranty period, excluding damage caused by human error.

2) Technical support: 24/7 bilingual (English and Chinese) service, response time ≤ 4 hours

3) Installation, commissioning, and training services: The user is responsible for on-site basic installation. Seelong will dispatch two professional technicians to provide on-site guidance (including equipment positioning and calibration, and pipeline / line connection specifications); equipment commissioning will be handled entirely by us (including power-on testing, parameter calibration, and system linkage testing); 3 days of free professional operation training will be provided (covering equipment operation, parameter settings, daily maintenance, and troubleshooting) to ensure that operators are proficient in using large-scale equipment.
